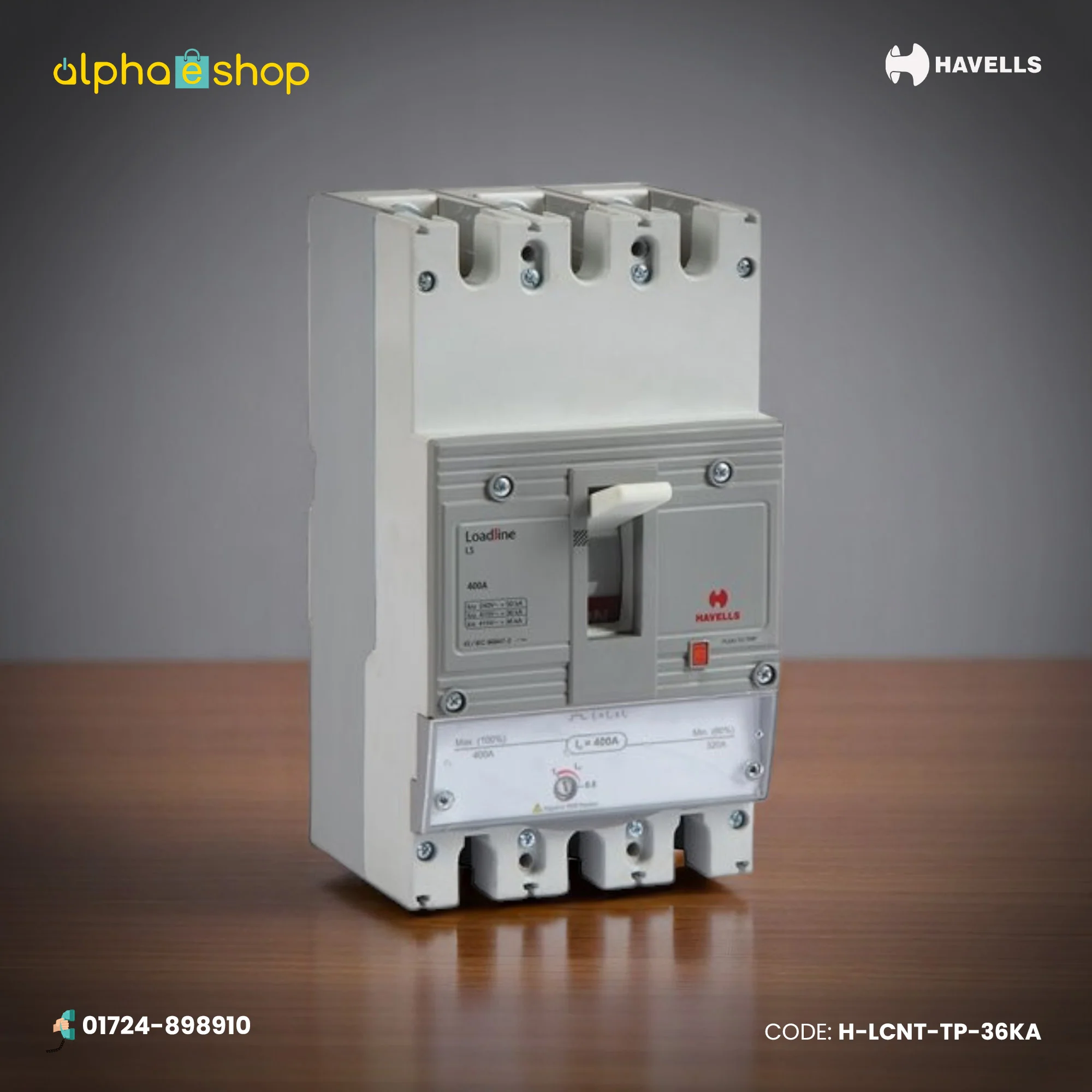

Moulded Case Circuit Breaker (MCCB) TP 36 KA | H-LCNT-MCCB-TP-36KA
Specifications
Technical Specification
| Execution pole | Triple Pole (TP) |
| Current Rating | 100A |
| Capacity |
36KA |
| Humidity |
0-90% |
| Ambient temp |
400 °C (500 °C on request) |
Voltage
| Rated insulation voltage |
|
|
Rated operational voltage |
415 V AC |
|
Rated impulse voltage |
8 kV |
Operation
|
Cooler Operation |
Grooves provided on outer body, so that when individual poles are placed adjacent to each other in a distribution board it forms a very effective channel for better air circulation, resulting into a cooler operation |
Type
|
Type of release: |
Thermomagnetic |
|
Rated frequency: |
(50/60) Hz |
| Warranty | - |
